Equipment List

Equipment List

EDM Equipment

Fanuc Alpha-C400iA Wire EDM Machine 30.5″ x 23.6″ x 10″ workpiece size, 14.6″ X 10.6″ X 10.2″ part size. 0.00000004” positioning.

-Fanuc Alpha-0iE Wire-EDM Machine 30.5” x 23.6” x 9.8” workpiece size, 14.6″ X 10.6″ X 10.2″ part size  0.00000004” positioning.

Fanuc Alpha-1iD-16 Wire EDM Machine  41.3″ x 32.3″ x 16.1″ workpiece size, 23.6″ x 15.7″ x 16.2″ Table Travel and PCD cutting option.

Fanuc Alpha-1-B Wire-cut EDM Machine  31″ X 29″ X 11.8″ workpiece size, 20″ X 14″ Travel Envelope.

Fanuc Alpha-0-C Wire-cut EDM Machine  25.5″ X 15.5″ X 7″ workpiece size, 12.6 X 8.6″ Travel Envelope.

Mitsubishi EA-12 CNC Conventional EDM  37.4″ x 23.6″ workpiece size, 15.75″ X 11.8″ X 11.8″ Travel Envelope.

EDM Drillmate EDM Hole Drilling Machine 11.8” x 9.8” X 16″ Travel Envelope.

CNC Machining Equipment

Methods MV1100H 5-Axis Vertical Machining Center, 15,000 RPM Spindle w/ ceramic bearings, 30hp, 1,890 IPM rapids, 32 Station Belt Style Tool Changer, Thermal Compensation.

Mazak 530C-II Vertical Machining Center, Matrix Nexus Control, Very High Accuracy, 51.18 X 21.65″ Part Size, 41.34″ X 20.87 X 20.08 Travel Envelope, 12,000 RPM.

Johnford V-45 Vertical Machining Center +-.0002″ machining accuracy, 1081 in/min rapid, 45.5″ X 26″ X 25″ table travels, Cat 40 Tooling, (2) speed 15 horsepower, high torque motor, 8000 RPM spindle.

Fadal VMC-2216 w/4th Axis, X/Y/Z axes travel of 22” x 16” x 20” and rapid travel rate of 1000 inch/min, 8,000 RPM.

Feeler VMP-800 Vertical Machining Center, 32″ X 20.5″ X 20″ travel envelope, 12,000 RPM.

Milltronics RH20 Vertical CNC Milling Machine 40″ X 20″ X 24″ Travel Envelope.

Milltronics MB20 Vertical CNC Milling Machine 40″ X 20″ X 24″ Travel Envelope.

(2) Milltronics VM3018 Machining Centers, 10,000 RPM, Big Plus Spindle, 20 Tool Automatic Tool Changer, 30″ X 18″ X 20″ Travels.

Track DPM SX3 Bed Milling Machine Travels: 40″ x 20″ x 23.5″

Nakamura TMC-18 Turning Center with +-.0002″ machining accuracy and 10 station tool changer.  15hp with 2″ diameter capacity bar puller, 3 and 4 jaw chucks, 1 3/4″ capacity collet system.

Milltronics ML-16 CNC Lathe 17″ diameter X 40″ between centers. (10) station tool changer.

General Machining Equipment

Milling Machines

(2) Vertical Milling Machines

(1) Kerney & Trecker Horizontal Milling Machine

Lathes

(1) Kent 1840 Gap Bed Lathe

Grinders

(1) Brown & Sharpe 12″ X 36″ Surface Grinder

(1) Okamoto 12″ X 24″ Surface Grinder

(1) Harig 6″ X 12″ Surface Grinder

(1) Chevalier 6″ X 18″ Surface Grinder

(1) Supertec G38P100NC 15″ X 40″ OD/ID Cylindrical Grinder

(1) Myford 4″ X 12″ OD Grinder

(1) Parker Majestic ID Grinder

(1) Moore No. 2 Jig Grinder

Hones

(2) Sunnen Honing Machines

Saws

(1) Hyd-Mech 18″ Horizontal Band Saw

(1) Roll-in Vertical Band Saw

General Welding Equipment

(1) Miller Syncrowave 250 TIG Welder with Rotary Axis

(1) Miller Millermatic 252 MIG Welder

Sand Blasting/Glass Bead Cabinets

(1) Sandblast Cabinet

Inspection Equipment

Coordinate Measuring Machines

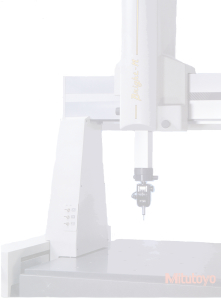

Mitutoyo CRYSTA-Apex S776 CNC Coordinate Measuring Machine w/motorized probe head.

27.6″ (700mm x 27.6″ (700mm) x 23.6″ (600mm)

Mitutoyo M-507 Coordinate Measuring Machine.

Video Inspection

Starret HDV-300 Digital Video Inspection System.

Surface Plates

(2) Tru-Stone 60″ X 60″ X 12″ Grade A Surface Plates.

(1) Starrett 24″ X 36″ X 6″ Crystal Pink Laboratory Grade AA Surface Plate.

Assorted individual Toolmaker surface plates.

Profilometers

Mahr Perthen Perthomet C5D Surface rough gage.  25″W X 36″L X 30″H capacity.

Gaging

Various sets of Gage Blocks and Pins.  NIST Certified.

Hardness Testing

Starrett Hardness Tester

Program & Design Software

Shoptech E2 Shop System Enterprise Resource Planning Software with integrated ISO quality module.

Solidworks Solid Modeling and Design Software

FeatureCam Manufacturing Software

Mastercam Manufacturing Software

DP Technologies Esprit 4-axis Wire-EDM CAM Software

CMM Manager Full-Feature CMM Software

EZCad 2 Laser Engraving Software

3CX VOIP Phone System Software

High-Precision Laser Welding

Alpha Laser ALV 150 Laser Welder w/Rotary Axis.

Alpha Laser ALM 250 Laser Welder w/Rotary Axis.

Alpha Laser ALTBasis Laser Welder w/Rotary Axis.

Heat Treating

Lucifer K24 Heat Treat Furnace 12″ X 12″ X 24″, 2300 degrees F..

Cress C136 Heat Treat Furnace 8″ X 10-1/2″ X 13″, 2250 degrees F.

Across International  IH25A-2T 30-80KHz 25KW Mid Frequency Compact Induction Heater.

Laser Engraving

Fiber Laser Systems FLS-20W-CN Fiber Laser Engraver with rotary axis.

3D Printing

High-speed, high-accuracy, large capacity 3D printer with the ability to print with a wide variety of materials, including ABS, PLA, HIPS, PVA, wood, bronze, copper, polyester, nylon, conductive and wax.  The wax has proven great in creating rapid prototype casting patterns.

High accuracy SLA laser 3D printer.
